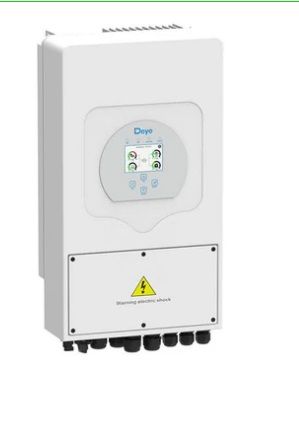

Deye 8Kw Single Phase Hybrid Inverter

Description

(SUN-8K-SG01LP1-EU)

• Package Includes WIFI Dongle & Current Transformer
• Max Efficiency of 97.6%
• 2 MPPT (Maximum Power Point Tracker)
• RS485 / CAN Communication Ports
• Load or Home power first with Zero Export to the Grid
• IP65 Ingress Protection
• High Power Factor
• AC Coupled
• Supports Generator Connection
• Six stages time of use setting
• Support multiple parallels
• Touchscreen Interface
• Update existing solar on-grid system to a hybrid system
• Use Gen input as crucial load output
• Compatible with PYLONTECH, LG, BYD etc, brand battery
• Output: 230V AC Single Phase @ 50Hz
• PV Rapid Shutdown Control, PV Arc Fault detection, input lightning protection, multiple inverters in parallel
• Multiple working modes: Grid-Tied, Hybrid or Off-Grid
• Simultaneously manages power to / from Panels, Batteries, Grid, Load, and Generator
• UPS time: less than 5ms
• Charge and Discharge up to 190A, 7.6/8Kw (120A 5Kw, 135A 6Kw)
• Wall Mounted
