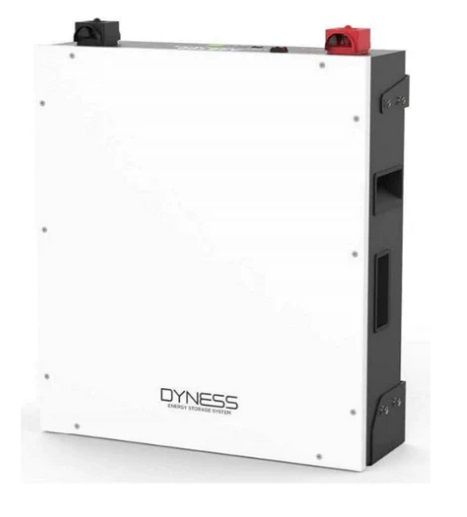

Dyness Battery Lithium Ion DL5.0C 5.12KWH 51.2V 100Ah

Description

(DYN-DL5.0C)

General Data
• Battery Type: LiFePO4
• Nominal Battery Energy: 5.12kWh
• Nominal Capacity: 100Ah
• Nominal Voltage: 51.2V
• Operating Voltage: 44.8V – 57.6V
• Recommended C Rate: 0.5C
• Recommended Charge / Discharge Current: 50A
• Maximum Power Charge Current: 75A
• Maximum Power Discharge Current: 100A
• Peak Power Charge / Discharge Current: 110A (15s)
• Depth of Discharge: 85%
• Charging Temperature Range: 0°C to 55°C
• Discharging Temperature Range: -20°C to 55°C
• Communication: CAN / RS485 / RS232
• Cycle Life: >6000 Cycles
• Protection Level: IP20
• Warranty: 10 Year
• Expansion: 50 Units In Parallel
• Usage: Off-Grid and Hybrid Setups
• Certification: UN38.3 / CE-EMC / IEC62619 / CEl-021
