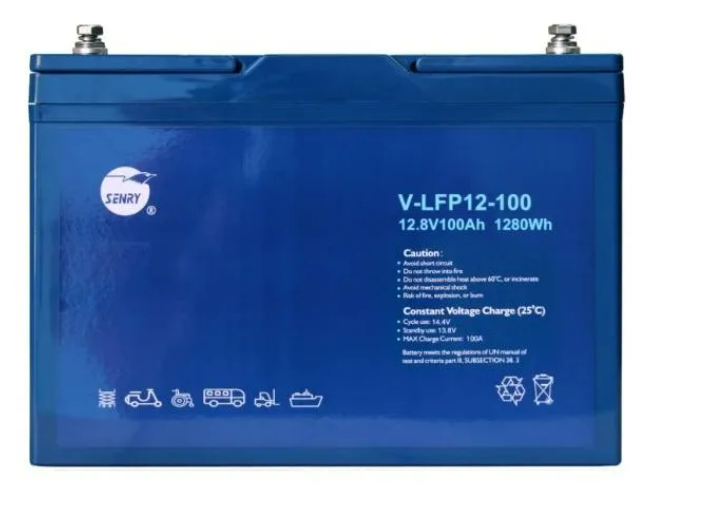

Senry V-Lfp12-100 12V 100Ah Lithium Battery

LFP12-100 12V 100Ah

Easy to carry lightweight Lithium 12.8v Battery great for replacing inverter gel batteries. With Wh of 1280 you can power a typical appliance of 150W power draw for approx 6 and a half hours (times may vary).

Attention:

• When the battery needs to be used in parallel or in series, each

battery shall be fully charged according to the standard charging

method before parallel or in series.

• Duration of maximum constant current is thermally limited

by internal electronics and depends on ambient temperature.

• Iron-V Lithium Iron Phosphate Battery
• Cost Effectiveness
• Longer Service Life
• Guaranteed Safety
• Fast Charge
• Drop-in Replacement

Nominal Characteristics

General Features

Case Material ABS

Length (mm) 306

Width (mm) 169

Height (mm) 215

Weight (kg) 10.3

Terminal Type M8

IP Grade /

BCI Group NO. 27

Cell Type-Chemistry Prismatic LiFePO4

Mechanical Characteristics

Cycle Life ≥2000

Operating Temperature Charge: 10 ºC ~ 45ºC

Discharge: -20ºC ~ 55ºC

Storage Temperature 20ºC~30ºC

Storage Duration 12 months at 25ºC

Heating Function Charging heating (Optional)

<1º, ON >6ºC, OFF

Operating Conditions

Voltage Window 10.8-14.6V

Max. Continuous Charge Current 100A

Max. Continuous Discharge Current 100A

Peak Discharge Current 200A􀀁􀀉15s ± 2s􀊣

Recommended charge current/A 50A

Recommended discharge current/A 50A

Charge current cut-off/A 3A

Charge & Discharge Characteristics

Primary Charging Protection Current: >105.0 ± 2.5A

Delay time:15 ± 2s

Secondary Charging Protection Current: >125.0A ± 2.5A

Delay time: 3 ± 1s

Primary Discharging Protection Current: >105.0 ± 2.5A

Delay time: 20 ± 1s

Secondary Discharging Protection Current: >210.0A ± 2.5A

Delay time: 3 ± 1s

Over-charge Voltage Protection Voltage: >14.8 ± 0.2V

Delay time: 2 ± 0.5s

Over-discharge Voltage Protection Voltage: <9.6 ± 0.2V

Delay time: 2 ± 0.5s

High Temperature Protection Charging: 65 ± 3ºC Recover: 60 ± 3ºC

Discharging: 65 ± 3ºC Recover: 60 ± 3ºC

Low Temperature Protection Charging: 0 ± 3ºC Recover: 3 ± 3ºC

Discharging: -20 ± 3ºC Recover: -15 ± 3ºC

BMS Characteristics

Nominal Voltage Nominal Capacity Energy IR Efficiency Maximum Batteries

in Series and Parallel

12.8 V 100Ah 1280Wh ≤ 12mΩ @ 100% SOC ≥ 99.5 % 2 x 4
