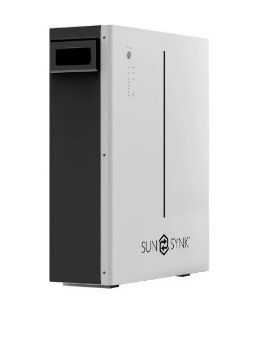

Sunsynk Wall Mount Battery LiFePO4 10.65 KWh

Description

Sunsynk Wall Mount Battery LiFePO4 10.65 KWh

• More usable Energy – 100% depth of discharge
• Flexible Investment – Scalable from 10.65 to 85.2 kWh
• Safe and Reliable – Premium Lithium Iron phosphate(LFP) 6000 cycles
• Easy Installation – Floor stand or wall stand
• High Energy Density – Proprietary CTP technology
• Perfect Compatibility – Compatible with Major PCS Brand

Sunsynk Wall Mount Battery LiFePO4 10.65 KWh SUN-BATT-10.65 Technical Specification

• Nominal Voltage: 51.2Vdc
• Nominal Capacity: 208Ah
• Battery Energy: 10650 Wh
• Charge Voltage: 55.68~56.16Vdc
• Discharge Voltage: 45.6-56.16 Vdc
• Nominal Charge/Discharge Current: 100A
• Nominal Charge/Discharge Power: 5000W
• Max Charge / Discharge Current: 200A
• Max Charge / Discharge Power: 10000W
• Short Circuit Current: 540A

Communication:

• Display: SOC status indicator, LED indicator
• Communication: RS232、RS485、CAN

General Specification:

• Dimension: 550×160×836mm
• Weight: 90kg
• Installation: Floor stand or Wall mounted
• Working Temperature: -20℃ ~ 60℃
• Storage Temperature: ≤25℃,12 months; ≤35℃,6 months; ≤45℃,3 months
• Operating / Storage / humidity: ≤ 95%RH
• Max Operating Altitude: ≤2000m
• IP Rating: IP20
• Cell Technology: LiFePO4，Lithium Iron Phosphate
• Cycle Life: 6000 Cycles @ 80% DOD / 25℃ / 0.5C，60% EOL
• Scalability: Max 8 batteries in parallel

Standard Compliance

• Certification: PACK: UN38.3、IEC62619、IEC61000
  CELL: UN38.3、IEC62619、UL 1642、JET
  (more available upon request)
