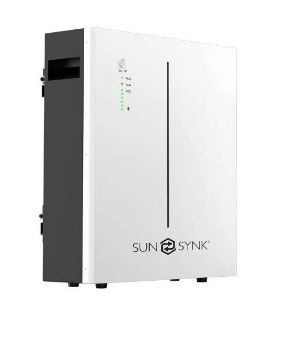

Sunsynk Wall Mount Battery LiFePO4 5.32 KWh

Sunsynk Wall Mount Battery LiFePO4 5.32 KWh SUN-BATT-5.32 Performance

• Nominal Voltage: 51.2 Vdc
• Nominal Capacity: 104Ah
• Battery Energy1: 5320 Wh
• Charge Voltage: 55.68~56.16Vdc
• Discharge Voltage: 45.6-56.16 Vdc
• Nominal Charge/Discharge Current: 50A
• Nominal Charge/Discharge Power: 2500W
• Max Charge / Discharge Current: 100A
• Max Charge / Discharge Power: 5000W
• Short Circuit Current: 350A
• Display: SOC status indicator, LED indicator
• Communication: RS232, RS485, CAN
• Dimension (W×D×H mm) 450x520x185mm
• Weight: 46.5kg
• Installation: Floor stand or Wall mounted
• Working Temperature2 -20ºC ~ 60ºC
• Storage Temperature:
  ≤25ºC, 12 months
  ≤35ºC, 6 months
  ≤45ºC, 3 months
• Operating / Storage / humidity: ≤ 95%RH
• Max Operating Altitude: ≤2000m
• IP Rating: IP20
• Cell Technology: LiFePO4, Lithium-iron Phosphate
• Cycle life: 6000 Cycles @ 80% DOD / 25ºC / 0.5C, 60% EOL
• Scalability: Max 8 batteries in parallel
• Certification: PACK:UN38.3, IEC62619, IEC61000, CELL:UN38.3,
  IEC62619, UL 1642, JET (more available upon request)
