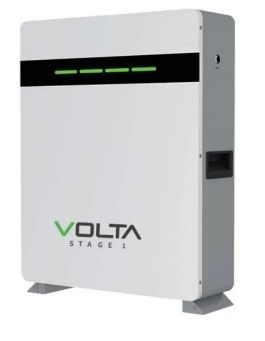

VOLTA Battery Lithium Ion 14.34KWH 51.2V 280AH

(Volta-Stage-4)

14.3Kwh 280Ah Stage 4

• Compact size for space saving
• -Reliable performance 1C Rated
• -95% DoD with more usable capacity
• -Modular design for expansion
• -Up to 8 units can be stacked in parallel
• -6000 cycles with 10+ year design life @ 80% DOD
• -Safety Cert TUV, CE, UN38.3
• Power cable set, Wall bracket set and Floor standing Feet included.
• 5 Year warranty

• Charge Voltage: 56vdc
• Max Discharge Current: 200A
• Discharge Cut Off Voltage: 44.8vdc
• Communication: RS485/RS232, CAN
• Dimensions: 480x650x225mm
• Weight: 85Kg
• Installation Method: Wall Mounted OR Floor Standing
• *Test Condition: 80% DOD, 0.2C charge & discharge @25℃
